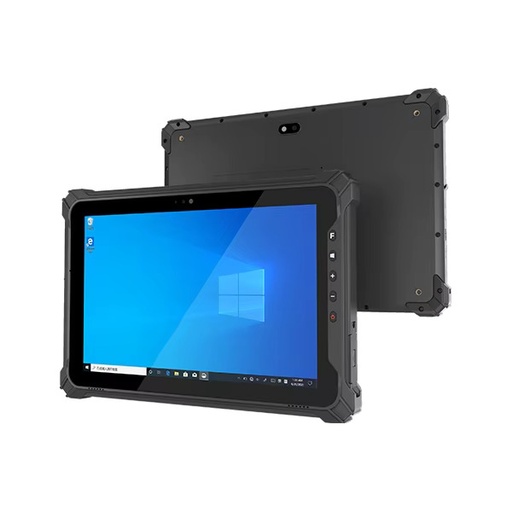

Cost-Effective Rugged Mobile PC
M17J is equipped with Intel® 11th-Gen Jasper Lake N5100 processor, featuring enhanced AI capabilities on the Windows 11 operating system. Its flagship full-screen display measures 10.1 inches and is complemented by symmetrical stereo speakers. With 8GB+128GB memory and support for Micro SD card storage expansion, it ensures ample storage space. The device boasts a 5000mAh/7.6v removable battery with PD fast charging support. It offers multiple interfaces, including RJ45 Ethernet, RS232 Serial Port, and USB 2.0. Additionally, M17J provides various optional accessories for mobile office, in-vehicle, and other scenarios. Its IP65-grade dustproof and waterproof rating, along with 1.22m drop resistance, ensure durability and reliability in diverse environments.
Processor: Intel JASPER LAKE N5100
Operating System: Windows 10 IoT/ Windows 11 Pro
Memory/Storage: 8GB RAM/128GB ROM
Display: 10.1" IPS FHD (1920x1200) 400 nits or optionally 10.1" IPS HD (1280x800) 700nits
Touchscreen: 10-points Capacitive
Cameras: Front 5.0 MP, Rear 8.0 MP
Network Connections:
WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
Bluetooth BT 5.0, Transmission distance: 10m
4G LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA:B1/B5/B8, GSM:900/1800, Optional: EC25-AF, 750-VA, 750-VSA
Support GPS , GLONASS
I/O Ports:
USB3.0 x 1 (USB A port, HOST data transmission),
Type C 3.1 x 1 (Charging and Data transmission, Full function Type-C),
Φ3.5mm standard earphone jack x 1,
HDMI 2.0a Mini x 1,
3-in-1 card holder (Micro SD card, up to 512GB; Nano SIM x 1)
12 PIN Pogo x 1
Optional extension port 1 of 3: RJ45 Ethernet x 1 (10/100M adaptive) Standard or DB9 serial port x 1 (RS232) or USB 2.0 Type-A x 1
Built-In Options:
2D Barcode Reader, Optical resolution: 5mil, Scanning speed: 50 times /s
NFC Reader, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols, Card reading distance: 4cm
Battery: Removable Li-polymer battery 5000mAh/7.6V, Endurance 8 hrs (50% volume sounds, 50% screen brightness, 1080P HD video display by default)
Power/Charging: AC100V ~ 240V, 50Hz/60Hz,Output Type-C 12V/4A EU, supports battery-free working mode
Reliability:
Operate temperature: -20 °C ~ 60 °C
Storage temperature: -30 °C ~ 70 °C
Humidity: 95% Non-Condensing
Ruggidity: IP65 certified, MIL-STD-810G certified,Battery: UN38.3, MSDS, Air and Maritime Reporting, IEC62133
Drop Height: 1.22 m drop-tested
Dimensions: 274.9 x 188.7 x 23.1mm
Weight: 1140g
Optional Accessories: Hand-Strap, Back-Strap, TP Resist Film, Vehicle Mount, Car (Cigarete lighter) Charger, Docking Charger, Quad Battery Charger
